Instrument Connectors：A variety of 15 pin D-subminiature connector and round type solutions are available in either metal or plastic connectors, overmolded housings and straight or angled flex-reliefs. Connectors are surrounded by insert molded flex-reliefs to protect terminations and extend product life.

Trunk Cables：The multi-link an 2 meter (80 inch) trunk cable Shielded, low noise cable minimizes microphonic noise and electrical nterference. Flexreliefs at the connector and cable yoke provide added durability and reduce conductor breakage. The cable is available in AHA or IEC nomenclature and color coded patient terminations. Lot numbers are included to indicate quipment compatibility and product traceability.

Patient end termination：Lead wires can be terminated to a variety of patient connectors to mate with adapters or industry standard electrode attachments. Shielded lead wires are jacketed in TPU and have color coded flex reliefs. Lead wires can accommodate 4.7 k, 10k or 20k ohm resistors (snap, grabber, banana and straight pin only).

Adapted to the electrocardiogram machines of Fukuda,Hellige,GE-Marquette,GE-Medical,Mindray,Spacelabs,GEMS,Philips,CONMED,Mortara.

Image	Model	Compatible Brand：	Item description	Package Type

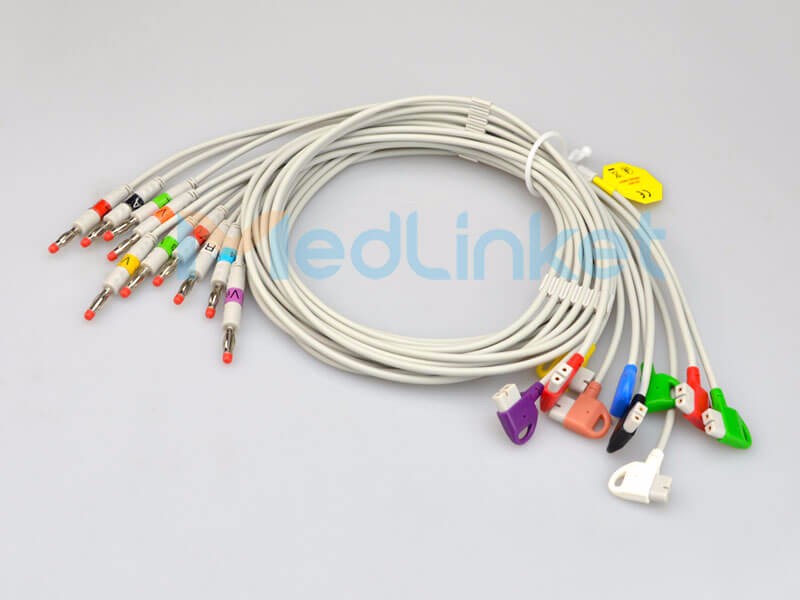

	VT047BNI	Mortara 250C	10-Ld Set patient leads, 4 x limb lead (120cm), 6 x chest leads (80cm), no Resistance, 2P plug, IEC, Banana	1pcs/bag
	VE008SNA	Hellige , GE-Marquette; suitable for all MultiLink-Plug	10-Ld Set patient leads, 4 x limb lead (130cm), 6 x chest leads (70cm), no Resistance, VS-2P plug, AHA (AAMI), Snap	1pcs/bag

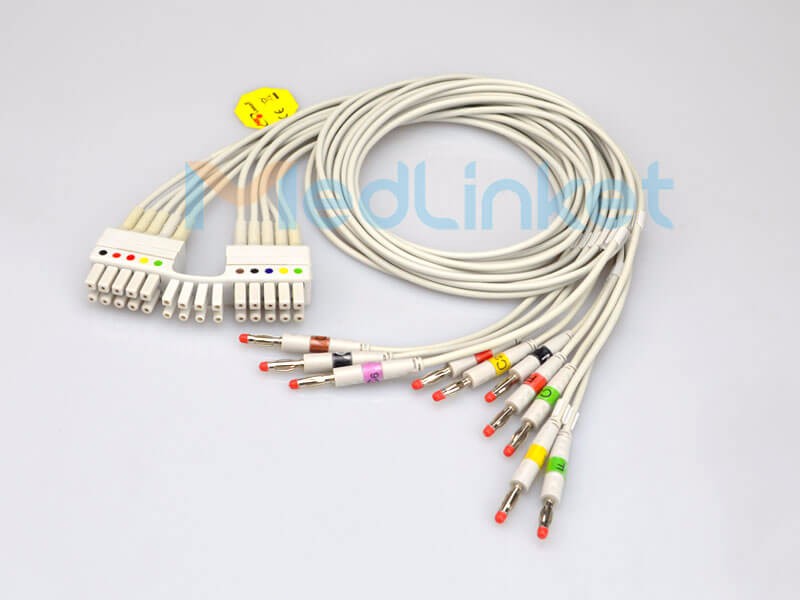

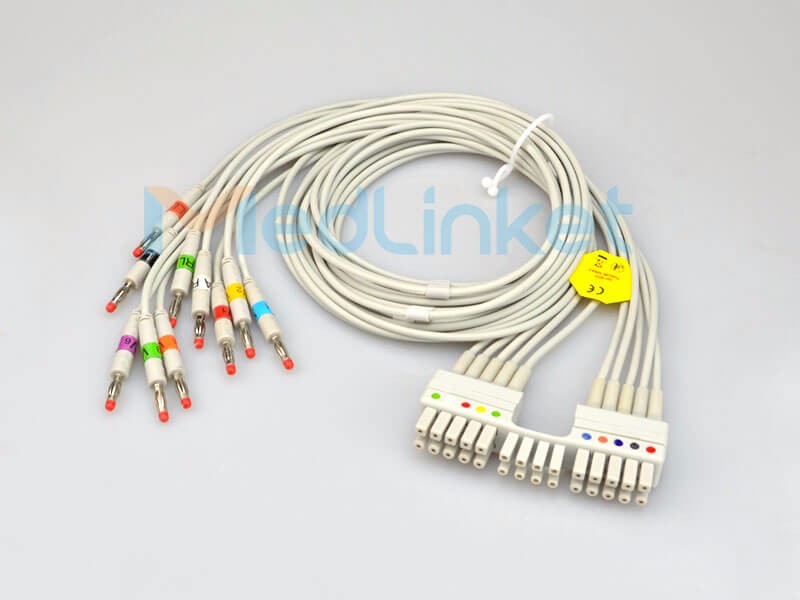

	VT047BNA	Mortara 250C	EKG Lead wires, 10-Ld Set , 4 x limb lead (120cm), 6 x chest leads (80cm); no Resistance, 2P plug, Banana, AHA, 0.08 KG, TPU, Cool Grey	1pc/bag
	EQ056-5AI	Drager Siemens ; Multimed-Pot system fur serie SC 6000, SC 6002XL, SC 7000, SC 9000, Art. Nr.3368391 (8.2ft) Art. Nr. 5950196 (4.9ft) ;	SC9000XL Multi-link Cable, 5LD, 8.2ft, AHA/IEC, 1KΩ resistance, 0.341 KG, TPU, Cool Grey, Original model No. : 3368391; fit for Euro style LeadWires	1pc/bag
	VX018BNA	PHILIPS Use with Philips Instrument M1700A M1701A M1702A;TRIM II, Trim 1, 2, 3	AHA (AAMI), Banana, 0.198 KG,TPU, Cool Grey, Original model No. : M1713B	1pc/bag
	VF008-15	GEMS MAC 5000 CAM14	ext-cable, 15ft, (450cm). 0.2KG, TPU, Cool Grey,	1pc/bag
	VE008A51	Hellige GE-Marquette; For GE MAC 1100/1200/1200ST,CardioSmart, CardioSys, MAC5000, MAC 5000ST, CASE,CASE 8000,Systems with CAM 14 Acquisition Module or with Cable Accepting,CAM 14 Leadwires	Leadwire,CAM/Universal, 51in.(130cm),0.091 KG, TPU, Cool Grey, Original model No. : E9006PM	4pcs/pk
	VE008A40	Hellige GE-Marquette; For GE MAC 1100/1200/1200ST,CardioSmart, CardioSys, MAC5000, MAC 5000ST, CASE,CASE 8000,Systems with CAM 14 Acquisition Module or with Cable Accepting,CAM 14 Leadwires	Leadwire,CAM/Universal, 40in.(102cm),102cm, 0.113 KG, TPU, Cool Grey, Original model No. : E9006PK	6pcs/pk

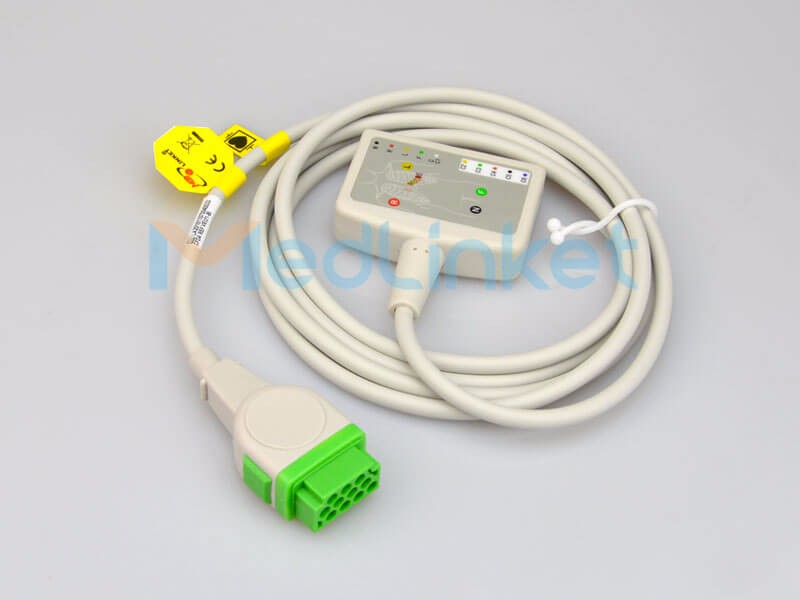

	VE006-BAI	For GE Eagle, Solar, Dash , Tram, MAC-Lab Cath Lab System, Datex-Ohmeda S/5 FM, Original P/N: (AAMI: E9002ZH, 416035-001) (IEC: E9002ZJ, 416035-002)	Multi-Link 12-Ld ECG cable, L=2.2m, Rectangle 11p>VS 10L Yoke, AAMI/IEC , 1kΩ Res. 0.213 KG, TPU, Cool Grey	1pc/bag

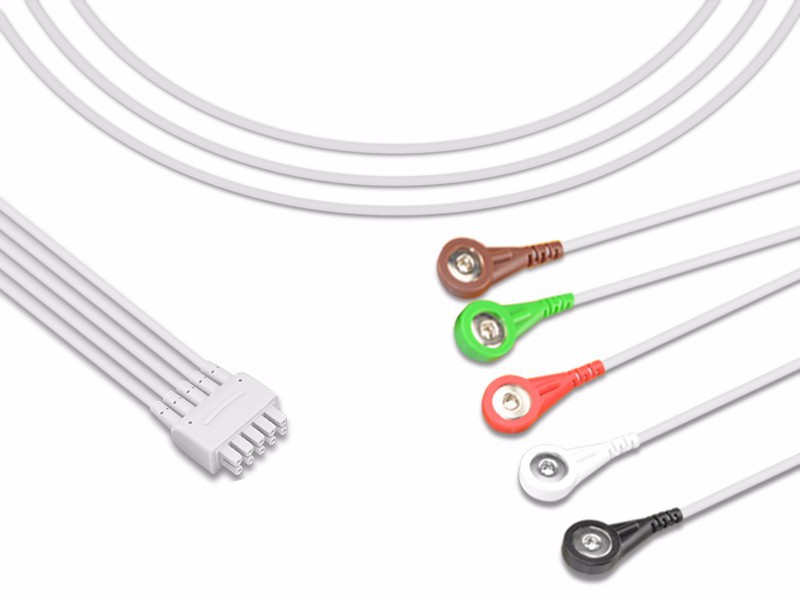

	EE051S5A	GE-Medica; Holter Multi-Link Leadwire Sets – For GE SEER MC Holter Recorder For GE Eagle, Solar, Dash Monitors, Tram, MAC-Lab Cath Lab System, Datex-Ohmeda S/5 FM	Multi-Link Ldwr Set, 5Ld, 51 in. , L=130cm, AHA (AAMI), Snap, 0.128 KG, Cool Grey, TPU, Original model No. : E9008KC	1pc/bag
	VJ032-EAI	Fukuda	12-Lead ECG Trunk Cable,12pin>>2p*10 Euro Yoke,L=2.2m, AAMI/IEC,20kΩ Res.+discharge,Fit Euro type leadwires	-
